SCIMAP Fitted 2: Calibrate Weights¶
The second of the three SCIMAP Fitted tools. Takes the per-site, per-class statistics table produced by SCIMAP Fitted 1 (or an equivalent summary CSV from the SCIMAP-Fitted research scripts) plus observed water-quality values, and searches land-cover weight space for the vector that ranks the sites in the same order the observations do.
For every sampled weight vector, the predicted risk at each monitoring site is compared against the observations by Spearman rank correlation, and the best-fitting vectors are kept. Pearson correlation and R² are reported as diagnostics only: the prediction is an arbitrary-scale index and the observation is a concentration, so R² between them measures the scale mismatch as much as the fit.
Where to find it: Processing Toolbox → SCIMAP → SCIMAP Fitted 2:
Calibrate Weights; toolbar icon; &SCIMAP menu.
Screenshot:

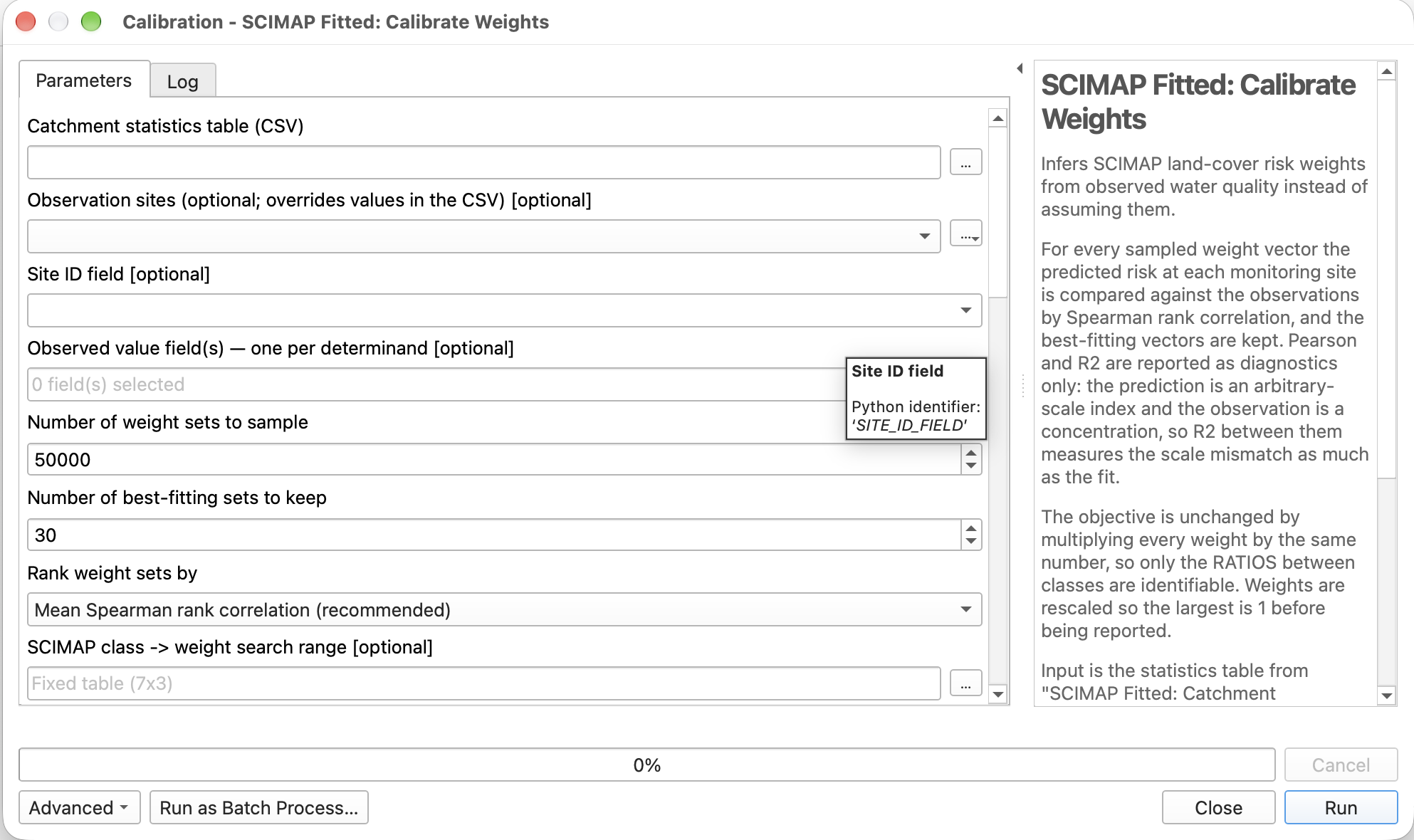

The Processing dialog with the statistics table input and weight search range table.
Parameters¶
| Parameter | Description | Default |
|---|---|---|
| Catchment statistics table (CSV) | Output of SCIMAP Fitted 1, or an equivalent research-script summary. | — |
| Observation sites (optional) | A point layer that overrides the observation values already in the CSV. | Optional |
| Site ID field | Matches sites between the point layer and the CSV. | Optional |
| Observed value field(s) | One numeric field per determinand. | Optional |
| Statistics column to calibrate against (Advanced) | Which per-class statistic to use as the predictor. | mean_connectivity_x_erosion |
| Number of weight sets to sample | Size of the Latin hypercube search. | 5,000 |
| Number of best-fitting sets to keep | How many top weight vectors are written to the "best-fitting" output. | 100 |
| Rank weight sets by | Mean Spearman rank correlation (recommended), mean Pearson correlation, or mean R² (diagnostic only). | Spearman |
| SCIMAP class → weight search range | Min/max search bounds per SCIMAP class. | Default bounds |
| Rescale reported weights so the largest is 1 | Only the ratios between class weights are identifiable — multiplying every weight by the same number leaves the objective unchanged — so weights are rescaled for readability. | On |
| SCIMAP class held at a fixed weight (Advanced) | Optionally pin one class (e.g. water) rather than calibrate it. 0 = none. |
None |
| Weight for the held class (Advanced) | The fixed value for the pinned class. | — |
| Hold that class during calibration as well as cross-validation (Advanced) | Whether the pin applies to the main search too, or only to cross-validation. | Off |
| Random seed (Advanced) | For reproducible sampling. | 42 |
| Cross-validate the calibration (slow) | See below. | Off |
| Sites held out per fold (k) | Sites excluded from fitting and predicted, per fold. | 1 |
| Maximum folds before sampling them | Caps runtime when the exhaustive fold count is very large. | — |
| Weight sets ranked per batch (Advanced) | Batch size for the internal ranking loop. | — |
| Cross-validation worker threads (Advanced) | Threads used for cross-validation. | Up to 4 |
Outputs¶
| Output | Description |
|---|---|
| Calibration metrics (all weight sets) | Every sampled weight set with its scores. |
| Best-fitting weight sets | The top-N sets, with their weights and scores. |
| Fitted parameter set (XML) (optional) | The single best-fitting weight vector, in the same XML format used by Apply Land Cover Risk Weights and SCIMAP Sediment — load it straight into either. |
| Run summary (optional) | Key settings and headline results for this run. |
| Cross-validation skill (optional) | Out-of-sample correlation, if cross-validation was run. |
| Cross-validation held-out predictions (optional) | Per-site held-out predictions, if cross-validation was run. |
| Diagnostic plots folder (optional) | Weight boxplot, dotty plot, cross-validation boxplot and held-out error plots (needs matplotlib). |
Cross-validation — the honesty check¶
With seven land-cover classes and often only a few dozen monitoring sites, there are only a handful of observations per free parameter, so a high correlation can easily be an artefact of searching a large space rather than a real relationship. Cross-validation repeatedly refits on all but k sites and predicts those held-out sites; comparing that out-of-sample score against the full-sample calibration score is the check on whether the fit is real. It is off by default because its cost grows sharply with k, and the tool warns before committing to a run it estimates will take more than ten minutes.
Screenshot:

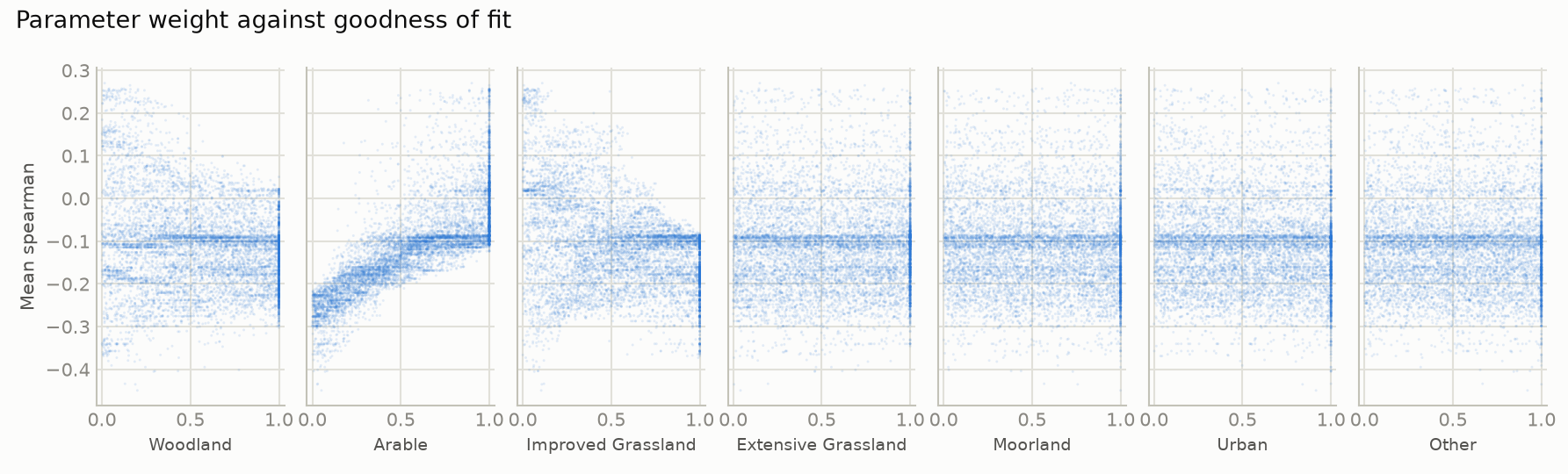

The dotty plot: rank score against each class's sampled weight, showing which classes the data actually constrain.
Screenshot:

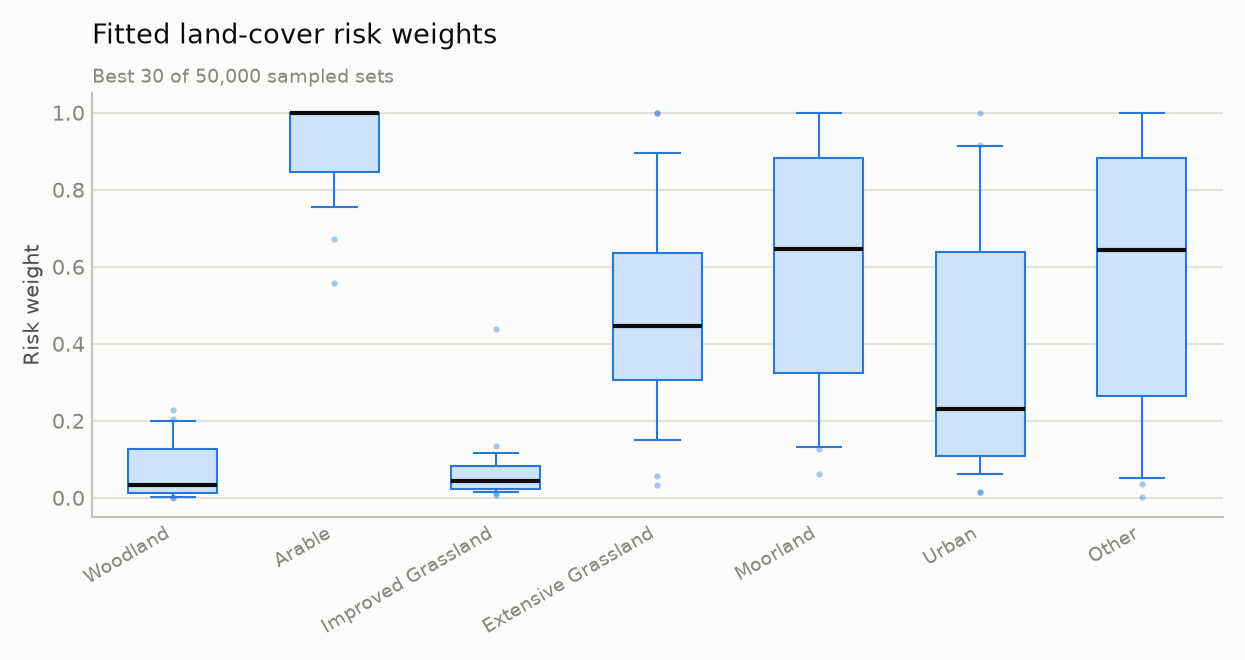

The weight boxplot for the best-fitting sets.
Notes¶
- Observations of
-9999are treated as missing. A determinand needs at least three valid values to be calibrated against. - If the observation-sites-per-class ratio is low, the log reports an "overfitting risk" rating and recommends enabling cross-validation.
